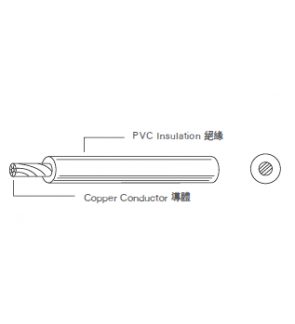

Stranded Solid Copper Conductor
额定值 : 80℃, 90℃, 105℃, 300V
用途 : 電子設備內接線
Internal Wiring of Appliance of Electronic Equipment Were Not Subjected to Movement or Mechanical Damage
Size Range:
30 - 10 AWG
标准 : Appliance Wiring Material UL758
|
导体 |
絕緣 | |||
|---|---|---|---|---|
| 线号 | 面积 (mm2) | 构造 (No./mm) | 厚度 (毫米) | 外径(毫米) |
| 30 | 0.050 | 11/0.080 | 0.38 | 1.10 |
| 28 | 0.080 | 7/0.127 | 0.38 | 1.20 |
| 26 | 0.130 | 7/0.160 | 0.38 | 1.30 |
| 24 | 0.210 | 11/0.160 | 0.38 | 1.40 |
| 22 | 0.330 | 17/0.160 | 0.38 | 1.55 |
| 20 | 0.519 | 21/0.180 | 0.38 | 1.75 |
| 18 | 0.824 | 41/0.160 | 0.38 | 2.00 |
| 16 | 1.300 | 26/0.253 | 0.38 | 2.35 |
| 14 | 2.080 | 41/0.253 | 0.38 | 2.70 |
| 12 | 3.310 | 65/0.253 | 0.38 | 3.20 |
| 10 | 5.260 | 104/0.253 | 0.38 | 3.85 |
