| Conductor | Insulation | Jacket | ||||
|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) |

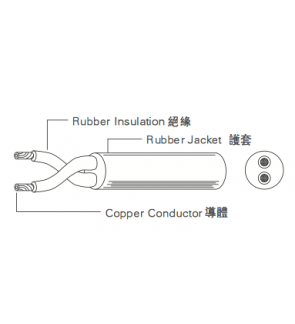

| 2 | 0.3 | 17 / 0.15 | 0.5 | 1.85 | 0.7 | 5.3 |
| 2 | 0.5 | 29 / 0.15 | 0.5 | 2.05 | 0.7 | 5.7 |

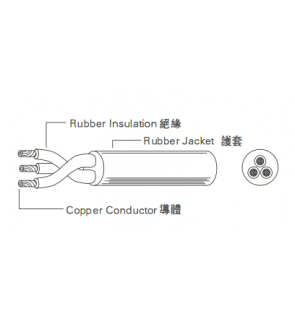

| 3 | 0.3 | 17 / 0.15 | 0.5 | 1.85 | 0.7 | 5.6 |
| 3 | 0.5 | 29 / 0.15 | 0.5 | 2.05 | 0.7 | 6 |
