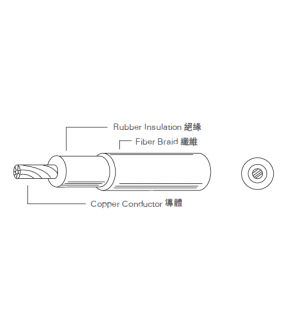

Solid or Stranded, Tinned or Bare Copper Conductor
Rating : 200℃, 300V
Application :
Internal Wiring of Electronic Equipment
Size Range: 26-16 AWG
Standard: UL 62, Subject 758
| Conductor | Insulation | Fiber Braid | ||||
|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick. (mm) | Nom. Diam. (mm) |
| 26 | 0.130 | 1 / 0.404 | 0.40 | 1.45 | 0.2 | 1.85 |
| 24 | 0.210 | 1 / 0.511 | 0.40 | 1.55 | 0.2 | 1.95 |
| 22 | 0.330 | 1 / 0.643 | 0.40 | 1.65 | 0.2 | 2.05 |
| 20 | 0.519 | 1 / 0.813 | 0.40 | 1.80 | 0.2 | 2.20 |
| 20 | 0.519 | 4 / 0.404 | 0.40 | 1.95 | 0.2 | 2.35 |
| 18 | 0.824 | 1 / 1.020 | 0.40 | 2.05 | 0.2 | 2.45 |
| 18 | 0.824 | 7 / 0.390 | 0.40 | 2.20 | 0.2 | 2.60 |
| 16 | 1.310 | 1 / 1.290 | 0.40 | 2.30 | 0.2 | 2.70 |
| 16 | 1.310 | 11 / 0.390 | 0.40 | 2.50 | 0.2 | 2.90 |
