Strandard Copper
Rating :
60℃ , 75℃, 80℃, 90℃, or 105℃, 300V
Application :
Internal Wiring or External Interconnection of Electronic Equipment
Size Range : 18-16 AWG
Standard :
Appliance Wiring Material, UL758
Flexible Cord UL 62

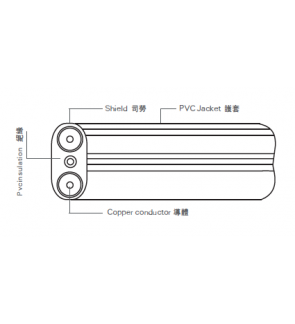

| Conductor | Insulation | Shield | Jacket | |||||
|---|---|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Live / Neutral wire Nominal Thickness(mm) | Earth wire Nominal Thickness(mm) | Nom. Thick (mm) | Nom. Diam. (mm) | |
| #18/3C | 0.824 | 41/0.160 | 0.38 | 2.10 | 2.10 | 0.127/4/16/10 | 0.76 | 3.72x10.20 |
| #16/3C | 1.310 | 26/0.253 | 0.38 | 2.39 | 2.39 | 0.127/4/16/11 | 0.76 | 4.00x11.00 |
| #18/3C | 0.824 | 41/0.160 | 0.38 | 2.10 | 2.10 | 0.127/4/16/10 | 0.76 | 3.72x7.45 |
| #16/3C | 1.310 | 26/0.253 | 0.38 | 2.39 | 2.39 | 0.127/4/16/11 | 0.76 | 4.00x8.00 |
