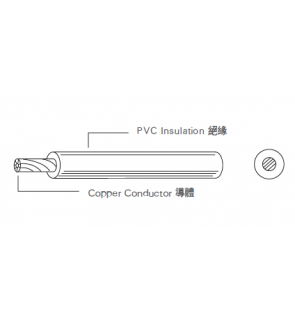

Solid or Stranded, Tinned or Bare Copper Conductor
Rating: 105℃, 600V
Application:
Internal Wiring or Electrical & Electronic Equipment
Standard: UL 62, Subject 758 / CSA C22.2 No. 127
Size Range: (UL) 28 - 9 AWG
(CSA) 24 - 4/0 AWG
| Conductor | Insulation | |||
|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) |
| 28 | 0.08 | 7 / 0.127 1 / 0.32 | 0.76 | 2.00 |
| 26 | 0.13 | 7 / 0.16 1 / 0.41 | 0.76 | 2.10 |
| 24 | 0.21 | 11 / 0.16 1 / 0.51 | 0.76 | 2.20 |
| 22 | 0.33 | 17 / 0.16 1 / 0.64 | 0.76 | 2.35 |
| 20 | 0.52 | 21 / 0.18 1 / 0.81 | 0.76 | 2.55 |
| 18 | 0.82 | 41 / 0.16 1 / 1.02 | 0.76 | 2.80 |
| 16 | 1.31 | 26 / 0.253 1 / 1.29 | 0.76 | 3.10 |
| 14 | 2.08 | 41 / 0.253 1 / 1.63 | 0.76 | 3.45 |
| 12 | 3.33 | 65 / 0.253 1 / 2.05 | 0.76 | 3.95 |
| 10 | 5.27 | 1 / 2.59 | 0.76 | 4.30 |
