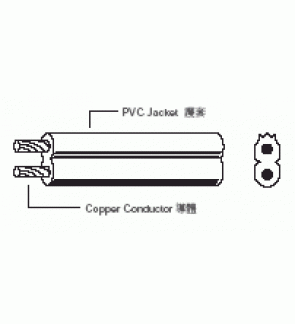

Bunch Stranded, Tinned or Bare Copper Conductor
Rating: -40℃ ~ 60℃, 150V UV Resistant
Application:
Designed for Outdoor Use Above and Below Ground in Landscape Lighting and Security Systems, Also Available in Colors or as 3/C Upon Request
Size Range: 18-10 AWG
Standard: CSA C 22.2. NO. 75-03
| No. of Conductor | Conductor | Insulation | Jacket | ||
|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | |
| 2 | 18 | 0.82 | 41 / 0.16 | 1.14 | 3.65 x 7.30 |
| 2 | 16 | 1.31 | 26 / 0.253 | 1.14 | 3.80 x 7.85 |
| 2 | 14 | 2.08 | 41 / 0.253 | 1.14 | 4.20 x 8.65 |
| 2 | 12 | 3.31 | 65 / 0.253 | 1.14 | 4.75 x 9.70 |
