No. of Conductor |

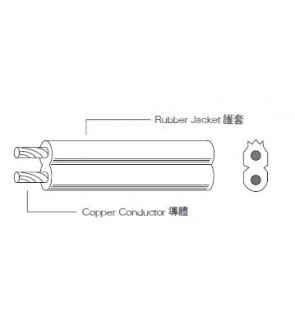

Conductor |

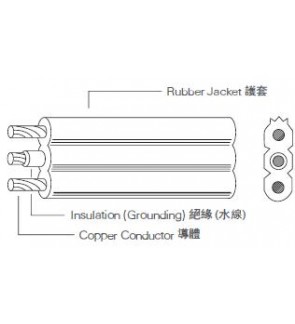

Insulation |
Jacket |
|
|
AWG Size |
Sectional Area (mm2) |
Construction (No./mm) |
Nom. Thick. (mm) |
Nom. Diam. (mm) |
Nom. Thick (mm) |
Nom. Diam. (mm) |
|
2 |
18 |
0.82 |
41 / 0.16 |
- |
- |
1.14 |
3.45 x 6.95 |
|
2 |
16 |
1.31 |
26 / 0.253 |
- |
- |
1.14 |
3.75 x 7.55 |
|
2 |
14 |
2.08 |
41 / 0.253 |
- |
- |
1.14 |
4.80 x 9.60 |
|
3 |
18 |
0.82 |
41 / 0.16 |
0.35 |
2.15 |
1.14 |
3.70 x 9.50 |
|
3 |
16 |
1.31 |
26 / 0.253 |
0.35 |
2.4 |
1.14 |
4.00x10.30 |
|
3 |
14 |
2.08 |
41 / 0.253 |
0.35 |
2.8 |
1.14 |
5.00x12.20 |
Marking:(UL) E114235 HPN 2/C 16AWG(xxmm2)300V 105℃ FT1 CSA LL835359 TYPE HPN 2/C 16AWG(xxmm2)300V 105℃ FT2 CHAU'S
Remark: CSA Certificate is applicable for AWG 18/2C and 16/2C only.
