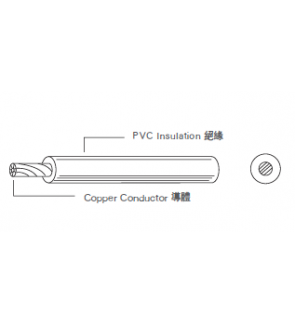

Copper, Nickel-Alloy or Stainless Stell Conductor
Rating : 105℃, 125V
Application:
In Electrically Heated Pads
Size Range:
35 - 31 AWG
Standard : Appliance Wiring Material UL758
| Conductor | Insulation | |||
|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) |
| 35 | 0.016 | 4/0.08 | 0.51 | 1.27 |
| 34 | 0.020 | 5/0.08 | 0.51 | 1.30 |
| 33 | 0.025 | 6/0.08 | 0.51 | 1.35 |
| 32 | 0.032 | 7/0.08 | 0.51 | 1.38 |
| 31 | 0.040 | 9/0.08 | 0.51 | 1.40 |
