HEATER CORD HPN

 Rating: 90℃ / 105℃, 300V

No. of Conductor Conductor Insulation Jacket
  AWG Size Sectional Area (mm2) Construction (No./mm) Nom. Thick. (mm) Nom. Diam. (mm) Nom. Thick (mm) Nom. Diam. (mm)

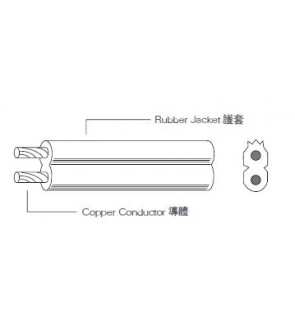

2 18 0.82 41 / 0.16 - - 1.14 3.45 x 6.95
2 16 1.31 26 / 0.253 - - 1.14 3.75 x 7.55
2 14 2.08 41 / 0.253 - - 1.14 4.80 x 9.60

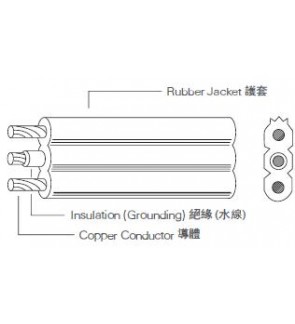

3 18 0.82 41 / 0.16 0.35 2.15 1.14 3.70 x 9.50
3 16 1.31 26 / 0.253 0.35 2.4 1.14 4.00x10.30
3 14 2.08 41 / 0.253 0.35 2.8 1.14 5.00x12.20
Marking:(UL) E114235 HPN 2/C 16AWG(xxmm2)300V 105℃ FT1 CSA LL835359 TYPE HPN 2/C 16AWG(xxmm2)300V 105℃ FT2 CHAU'S
Remark: CSA Certificate is applicable for AWG 18/2C and 16/2C only.
