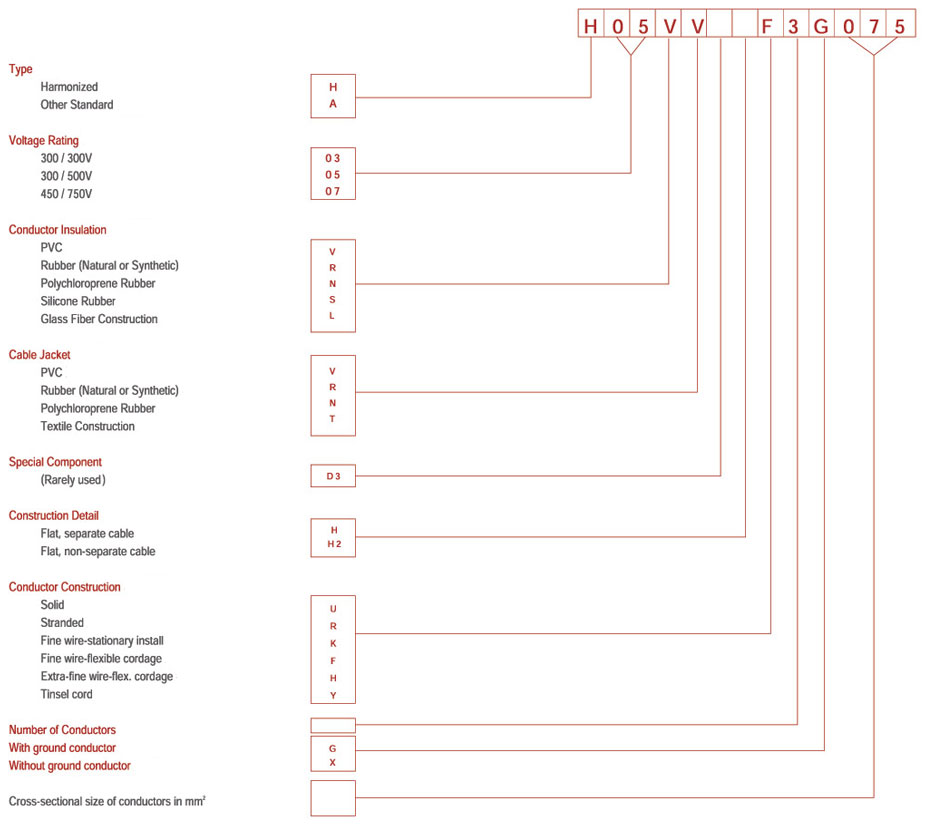

This table explains the European harmonized system nominal such as "H05VVF3G0.75"


Flexible Cord Jacketing Designations


Code Description AWG Size Conductors Insulation/Jacket Voltage
  Rating
TPT Tinsel Parallel Thermoplastic 27 Tinsel 2 PVC / No Jacket 250
TS Tinsel Service Rubber / Rubber 125
TST Tinsel Service Thermoplastic PVC / PVC 125
SPT-1 Service Parallel Thermoplastic - 1/64" Insulation 18 2,3 PVC / No Jacket 300
SPT-2 Service Parallel Thermoplastic - 2/64"  Insulation 18 - 16
SPT-3 Service Parallel Thermoplastic - 3/64"   insulation October 18th
SPE-1 Service Parallel Elastomer - 1/64"   insulation 18 2,3 Elastomer / No Jacket 300
SPE-2 Service Parallel Elastomer - 2/64"  insulation 18 - 16 2,3 PVC / No Jacket 300
SPE-3 Service Parallel Elastomer - 3/64"  insulation October 18th
SV Service Vacuum 18 2,3 Rubber / Rubber 300
SVO Service Vacuum Oil Resistant Jacket
SVOO SVO with Oil Resistant Insulation
SVT Service Vacuum Thermoplastic 18 - 17 2,3 PVC / PVC 300
SVTO SVT with Oil Resistant Jacket
SVTOO SVTO with Oil Resistant Insulation
SVE Service Vacuum Elastomer 18 - 17 2,3 Elastomer / Elastomer 300
SVEO SVE with Oil Resistant Jacket
SVEOO SVEO with Oil Resistant Insulation
SJ Sevice Junior October 18th 2,3,4 Rubber / Rubber 300
SJO SJ with Oil Resistant Jacket
SJOO SJO with Oil Resistant Insulation
SJT Sevice Junior Thermoplastic October 18th 2,3,4 PVC / PVC 300
SJTW SJT with Outdoor Jacket
SJTO SJT with Oil Resistant Jacket
SJTOO SJTO with Oil Resistant Insulation
SJE Service Junior Elastomer October 18th 2,3,4,5 Elastomer / Elastomer 300
SJEO SJE with Oil Resistant Jacket
SJEOW SJEO with Outdoor Jacket
SJEOO SJEO with Oil Resistant Insulation
S Service February 18th 2 or more Rubber / Rubber 600
SO Service with Oil Resistant Jacket
SOO SO with Oil Resistant Insulation
ST Service Thermoplastic February 18th 2 or more PVC / PVC 600
STW ST with Outdoor Jacket
STO ST with Oil Resistant Jacket
SE Service Elastomer February 18th 2 or more Elastomer / Elastomer 600
SEO SE with Oil Resistant Jacket
SEOW SEO with Outdoor Jacket
SEOO SEO with Oil Resistant Insulation
HPN Heater Parallel Rubber December 18th 2,3 Rubber / No Jacket 300
HSJ Heater Service Junior December 18th 2,3,4 Rubber / Rubber 300
HSJO HSJ with Outdoor Jacket
HS Heater Service February 14th 2,3,4 Rubber / Rubber 300
HSO HS with Oil Resistant Jacket
